There are Pros and Cons for this engine:

Pros:
 - A very simple engine with more horsepower then the Rotax for about the same price
 - No water and gear reduction units.

Cons:
 - A relatively new engine on the market, but everybody I’ve talked to loves it.
 - For water taxi operations, you need to watch the CHT for each cylinder carefully.
 - Currently no performance numbers for this engine on a Searey -

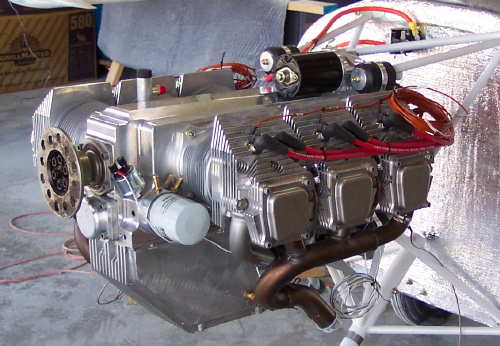

Jabiru 3300 120 hp Aircraft Engine

Jabiru3300Engine

Including

Starter

Exhaust

Ram Air Ducts

Voltage Regulator

Oil Cooler

Alternator

Voltage Regulator

Rubber Mount Bushings

Prop Guides

Mounting Hardware



$14,900.00 immediate delivery from stock

fob Tennessee

In stock now!



Engines purchased from stock or stock arriving by sea freight are $14,900.00. If we are out of stock, engines can be shipped from Australia by air for an extra $500.00. We try to keep engines in stock but may occasionally be out and it may take up to 30 days to restock.

Specifications



Engine Specs for Jabiru 3300

Type

6 cylinder opposed



Alternator

20 amp

Bore

97.5 mm



Power

120 hp @ 3300 rpm

Stroke

74 mm





112 hp @ 2850 continuous

Compression Ratio

7.8:1



Fuel consumption

5.1 gph @ 75% power

Rotation

Clockwise



Fuel

100LL or 92+ mogas

Dry Weight

178 lbs



Oil Capacity

3.5 litre

Ignition timing

25 degrees BTDC



Oil Type

AeroShell 100W

Firing Order

1-4-5-2-3-6



Width

23.9 inches

Vacuum

Spline drive std for Rapco pump



Length

24.4 inches
