I had a problem when selecting a place to build the Searey airplane, I did not have a hanger or garage in which to build it in.  The one thing I did have is a flat bed trailer that is 22’ of loading space and a 14,000 lb gross weight.
So what should I do? Well I had a good idea about how pickup trucks had campers on them and why not build a hanger cap on the trailer ...but 24’ x 8’ is not a very large amount of space for building a plane.    So I thought about it and after looking at my motorhome (with 2 slide-outs), I decided to build a trailer box with slide-outs on it.

So here are a few pictures on the building process for the “trailer/hanger”.   The trailer hanger is a total of 24’ long and 15’ wide (with the slide-outs extended). I also wanted enough height in the trailer so the ceiling height is 9’6”.

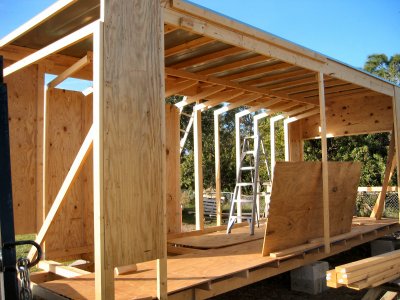

SeareyTrailer1205c02

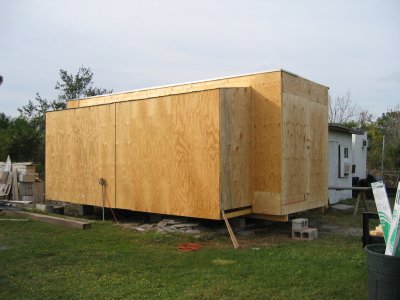

SeareyTrailer0106h

As you can see, this took about 2 months to build (part time). I finished the trailer hanger with two coats of paint, four sets of florescent lighting, a double door on the end of the trailer and a large (4’ x 8’) opening windows in the front for ventilation.

The trailer cost about $1,000 to build.  The slide-outs can be manually moved in by hand.  Each of the slide-outs are 10’ long and 3’ 6” deep.  There is a total of 4 slide-outs, 2 on each side.

Now on to building the Searey Airplane!!!

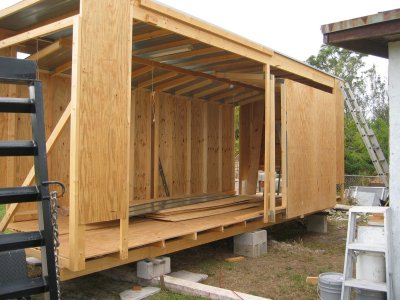

SeareyTrailer0106c

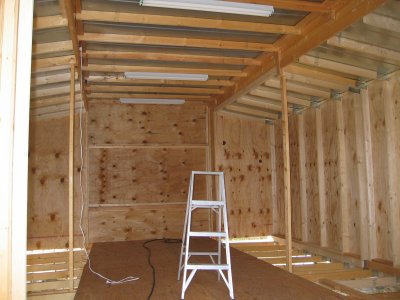

SeareyTrailer0106k
SeaReyTrailer0206c
